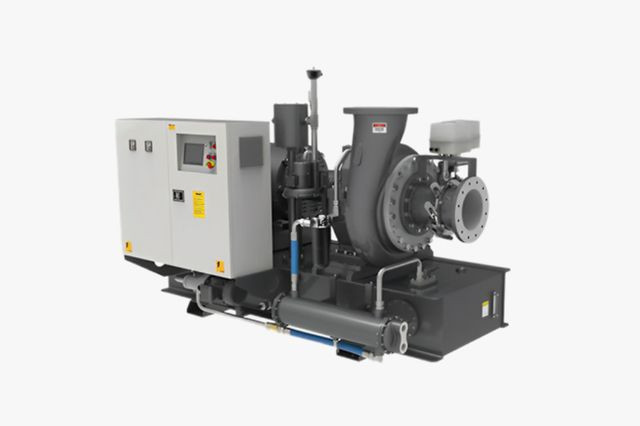

CF Series Single High-Speed Centrifugal Fan

Product introduction

JYC single-stage high-speed centrifugal blower is designed according to the three-dimensional flow theory, which is more in line with the flow law of fluid. The efficiency of this impeller is greatly improved compared with the two-dimensional flow impeller widely used in multi-stage low-speed centrifugal blowers at present. The single-stage high-speed centrifugal blower adopts axial air inlet and is equipped with an air inlet pre-rotation device at the front of the impeller to reduce the air inlet loss. Single-stage high-speed centrifugal blower is a primary structure with short flow path and small loss, which can create higher economic benefits for users.

Product technical parameters

CF series single high speed centrifugal fan

Type: CF

Pressure (bar) ：0.3~2.0

Flow rate (Nm3/h) ：1200~150000

Compressed medium: air, nitrogen, etc;
